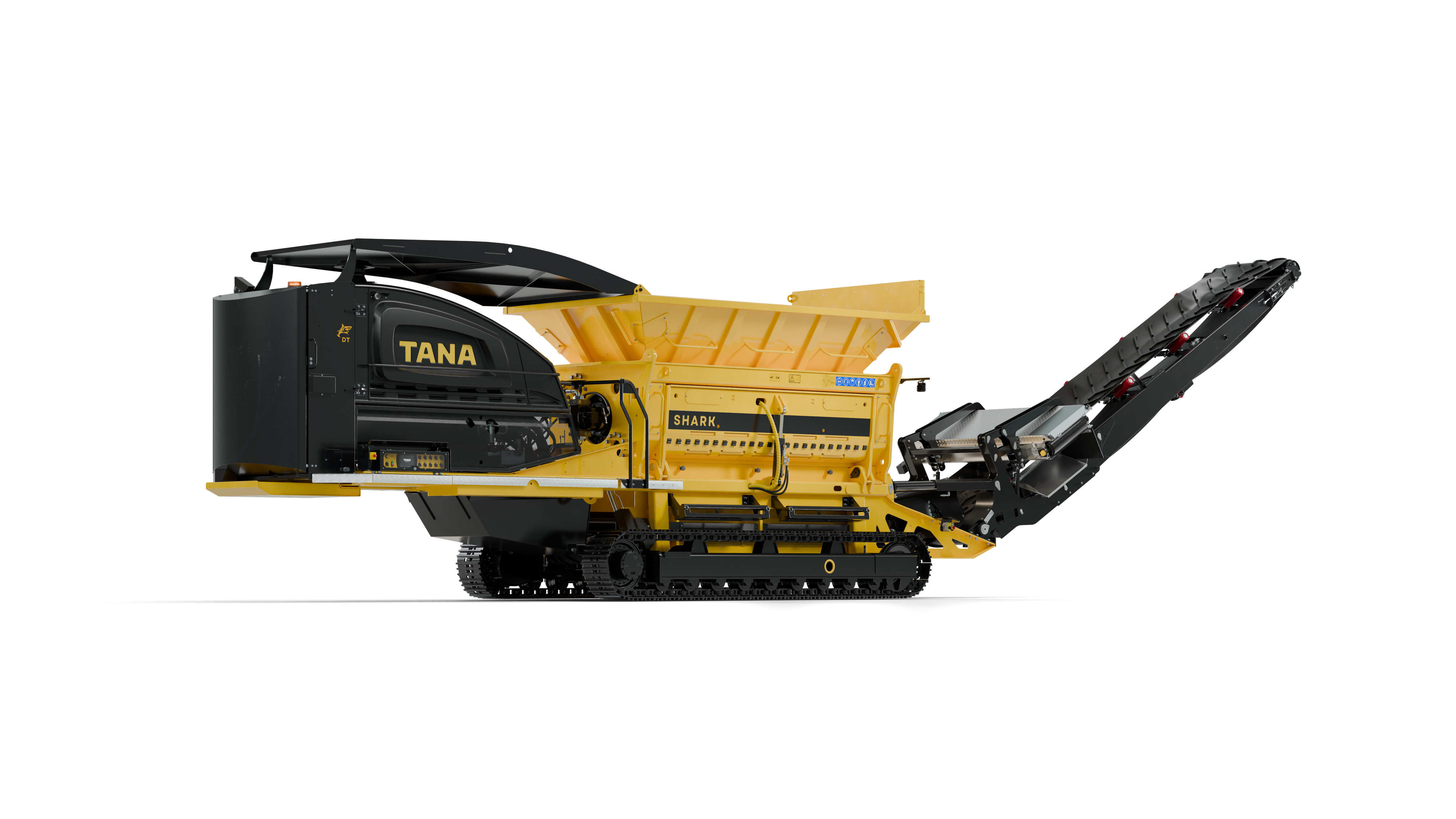

TANA Shark DT waste shredder

Diesel On tracks

Unique versatility

Ability to produce homogenous particle size

Takes care of the whole shredding process

Capability to process widest range of materials - even the toughest ones

Easy access to service points makes the daily routines more efficient

Heavy-duty shredding

The most versatile mobile waste shredder with excellent capacity and productivity. You will gain more profit with better fuel efficiency, lower machine operating costs and improved usability and serviceability. A robust machine is built to last and maximize uptime.

Designed for shredding the widest range of materials. TANA Shark DT industrial waste shredder enables full control over the particle size from 50 to 500 mm (2” to 20”) with lowest operation costs. This enables time and cost savings as it is possible to perform shredding in just one pass.

TANA ProTrack® collects, analyses and presents the data that is produced by TANA machines, so you can enhance your own business. The information management system enables you to calculate production efficiency, including costs and profits per ton, as well as to evaluate different operators by comparing the quantities they have shredded during a certain time period, such as a single work shift.

Large variety of customisation options – make it your own

  • Robust construction – gets the job done in toughest operating conditions and with toughest materials
  • Screens available – many sizes, desired particle size with one pass
  • Selection of rotors available – durability, performance, ease of maintenance
  • Easy access for maintenance – safe and quicker maintenance
  • TCS material programs – preset, available for adjustment
  • Reduced operating costs – service interval 500 h
  • Adjustable conveyor angle – 30° ± 10°
  • Touch screen display – user friendly interface for the operator
Rated power (SAE J1995) 399 kW (535 bhp) @2100rpm
Nominal torque 324,530 ft-lbs 440 kNm
Rotor length 9 ft 10 in
Number of rotor knives 33 / 44
Screen sizes 1.9", 3", 3.5", 3.9", 4.3", 4.7", 5.5", 6.6", 8.7", 10.8"
Screen area 29.6 sq ft
Emissions (diesel) EU Stage V/U.S. EPA Tier 4(f)
